Introducing the Inspectara FixedGuard 4096, a premier Fixed Under Vehicle Surveillance System (UVSS) engineered for permanent installation at high-security locations. Designed with advanced technology and superior imaging capabilities, this system delivers unparalleled security and efficiency.
The FixedGuard 4096 offers high-resolution undercarriage imaging up to 4096p, capturing clear and detailed images at vehicle speeds of up to 60 km/h. With its comprehensive camera technology, the system processes images directly within the camera itself, eliminating the need for external servers and ensuring fast and reliable performance in all weather conditions. Ideal for securing sensitive sites such as airports, military bases, government buildings, and other critical infrastructure, the Inspectara FixedGuard 4096 stands as a robust and dependable solution for modern security challenges.
Key Features:
- Fixed Installation: Designed for permanent security checkpoints.
- High-Resolution Imaging: Captures detailed undercarriage images up to 4096p.
- Vehicle Speed Capture: Effective at vehicle speeds up to 60 km/h.
- Integrated Image Processing: Processes images directly within the camera, eliminating the need for external servers.
- Automatic Speed Analysis: Independently analyzes vehicle speed without additional measurement equipment.
- HTTP Standard API: Seamless integration into existing security systems.
- Auto-Exposure Adjustment: Automatically adjusts brightness for optimal performance with various vehicle heights.
- All-Weather Performance: Designed to operate reliably in all weather conditions.
- Robust Construction: Durable build to withstand harsh environments.
- High Load Capacity: Supports vehicle weights up to 60 tonnes.
- Comprehensive Coverage: No limits on the length of a scan.
Specifications:
| Electrical and Mechanical Specifications | |
|---|---|
| Capturing Accuracy | 1/322 P98% |
| Maximum Vehicle Speed | 60 km/h |
| Vehicle Maximum Length | Unrestricted |
| Maximum Ride Height | 3000 mm |
| Maximum Vehicle Width | 4500 mm |
| Image Processing Time | 1 sec |
| System Extension (Optional) | Driver Image Capture and Foreign Object Dedection |
| Load Bearing Capacity | 60 Tonnes |
| Network Speed | Gigabit Ethernet |
| Protocol | IPv4 |
| Power | DC24V/150W |
| IP Rating | IP68 |
| Operating Temperature | -40°F to 140°F ; -40℃~+60℃ |
| Automatic License Plate Recognition | More than 60 Countries supported: RF, CIS, Worldwide |

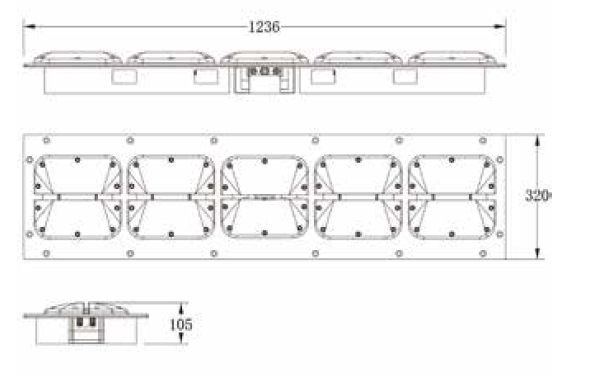

| Dimensions | 48.66″ x 12.60″ x 4.13″ ; 1236mm x 320mm x 105mm |
| Software Specifications | |
|---|---|
| Image Upload Time | 1 sec |
| Foreign Object Dedection Time | Less than 3 sec |
| Driver Image Capture Time | Less than 3 sec |
| Warning Type | Audible and Visual Alerts (Pop up) |
| User Control | Manual |
| Language | Customizable |
| Black/White List | Add/Edit/Delete |
| FR Sensitivity Range | 0-100 |
| FOD Sensitivity Range | 0-8 |
| Display | Auto Fit |
| Camera Specifications | |
|---|---|
| Scanning Camera | 4 MP, Area Scan |
| Image Resolution | 10000 x 4096 |
| View Angle of the Lens | 170° |
| White Balance | Auto |
| Exposure | Auto |
